Ackuray A135 DLP 3D Printer

Ackuray A135 Highlights

  • Machine built for precision and definition.
  • Quality prints at ultra-high definition.

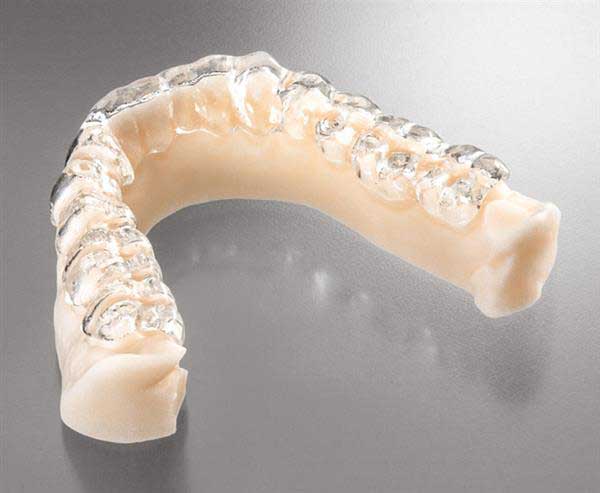

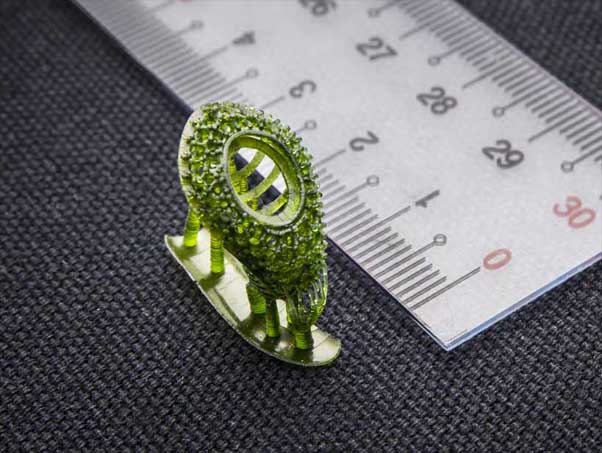

  • Suitable for Jewelry, Dental, Automotive and Product Design Industries.

Description

Ackuray A135 Direct Light Processing 3D Printer

Ackuretta technology’s Ackuray A135 is a machine built for precision and definition. The Ackuray A135 is a 70-micron XY axis and 1 micron resolution 3D printer that insurers users quality prints at ultra-high definition. The A135 utilizes DLP printing technology and uses resin to print objects; the resin uses a 405-micrometre wavelength for printing. Pushing the limits of design has never been easier and thanks to the Ackuray it just got easier! Suitable for Jewelry, Dental, Automotive and Product Design Industries.

A135 Specifications

  • Printing Technology: DLP
  • Machine Size: 360 (W) x 460 (D) x 720 (H) (mm)
  • Weight: 33Kg
  • Build Volume: 135 x 76 x 130 (mm)
  • Slice Thickness: 1μm to 100μm
  • X Y Resolution: 70μm
  • Resin Wavelength: 405μm
  • Operating Temperature: 12-32 ̊c (optimum temperature 26 ̊c)
  • Software: Materialise Visualizer proprietary software
  • Software License Period: 3 Years
  • OS: Windows XP and above
  • Input File Format: .STL, .MGX, .PROJECTFILE
  • Electrical Consumption: 100W
  • Power Supply: AC110-230V/50-60Hz
  • Standard Equipment: 3D Printer, Materialise Visualizer software, power cable, USB cable
  • Suitable Industries: Jewelry, Product Design, Automotive, Education, Dental

Additional information

Printing Technology

DLP

Machine Size

360 (W) x 460 (D) x 720 (H) (mm)

Weight

33Kg

Build Volume

135 x 76 x 130 (mm)

Slice Thickness

1μm to 100μm

X Y Resolution

70μm

Resin Wavelength

405μm

Operating Temperature

12-32 ̊c (optimum temperature 26 ̊c)

Software

Materialise Visualizer proprietary software

Software License Period

3 Years

Input File Format

.STL, .MGX, .PROJECTFILE

Electrical Consumption

100W

Power Supply

AC110-230V/50-60Hz

Standard Equipment

3D Printer, Materialise Visualizer software, power cable, USB cable

Suitable Industries

Jewelry, Product Design, Automotive, Education, Dental
