DOBOT SR4-2 4-axis Series Robot Manipulator

DOBOT SR4-2 Applications

  • Inspecting
  • Assembling
  • Measuring
  • Polishing
  • Sorting
  • Material loading and unloading

Description

DOBOT SR4-2 4-axis Series Robot Manipulator Description

DOBOT SR4-2 features strong rigidity, reliability and affordable price with ±0.02mm end repeatability, a 6kg maximum load and 600mm working range. Installment, operation and maintaining of SR4-2 can be extremely flexible and simple.

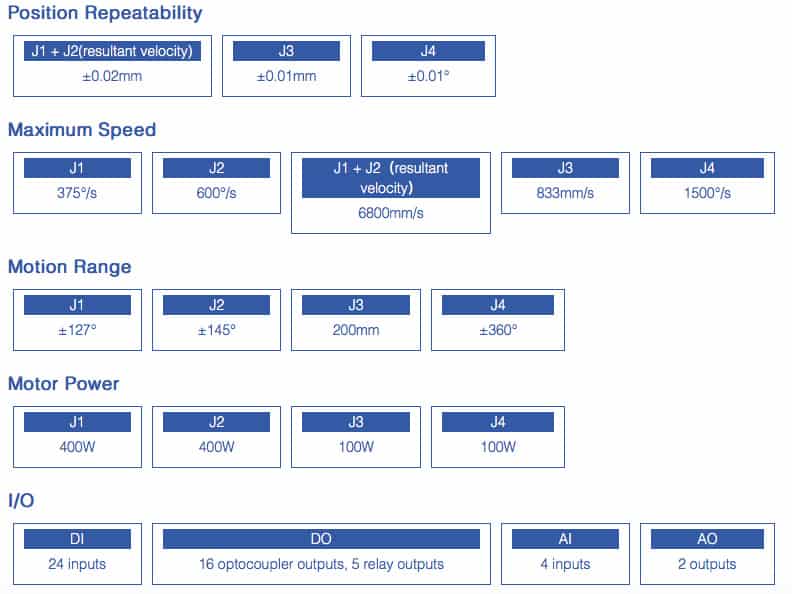

DOBOT SR4-2 Specifications

  • Type: DT-DB-4R020-00I

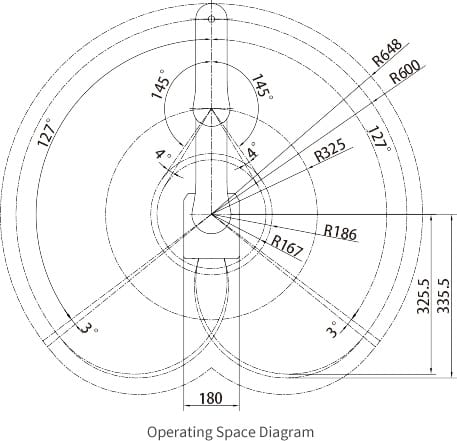

  • Reach: 600mm
  • Standard Cycle Time: 0.42s
  • User Circuit: 15Pin(D-Sub Port)
  • User Air Pipe: φ4mm x 1, φ6mm x 2
  • Net Weight: 19kg
  • Communication Mode: Ethernet, Modbus
  • Internal PLC: support
  • External Axis Control: support
  • Payload: 2-6Kg

DOBOT SR4-2 Applications

Inspecting, assembling, measuring, polishing, sorting, material loading and unloading



Additional information

Payload

2Kg-6Kg Max

Reach

600mm

Standard Cycle Time

0.42s

User Circuit

15Pin(D-Sub Port)

User Air Pipe

φ4mm x 1, φ6mm x 2

Net Weight

19kg

Communication Mode

Ethernet, Modbus

Internal PLC

support

External Axis Control

support
