DOBOT SR6-3 6-axis Series Robotic Manipulator

SR6-3 Robotic Manipulator Applications

  • Inspecting
  • assembling
  • measuring
  • polishing
  • sorting
  • material loading and unloading

Description

DOBOT SR6-3 6-axis Series Robotic Manipulator Description

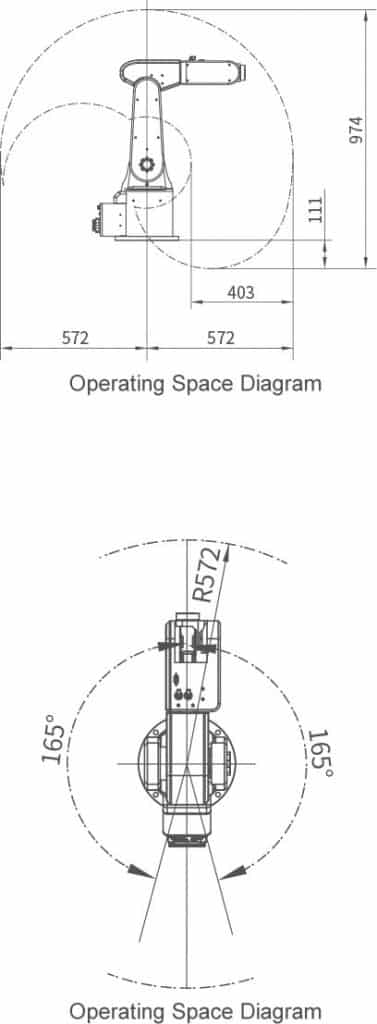

DOBOT SR6-3 is a 6-axis industrial robotic arm with a maximum load of 4kg, end position repeatability of ±0.02mm, and a maximum working range of 572mm. Its lightweight and compact design makes it the ideal choice for industrial line operations.

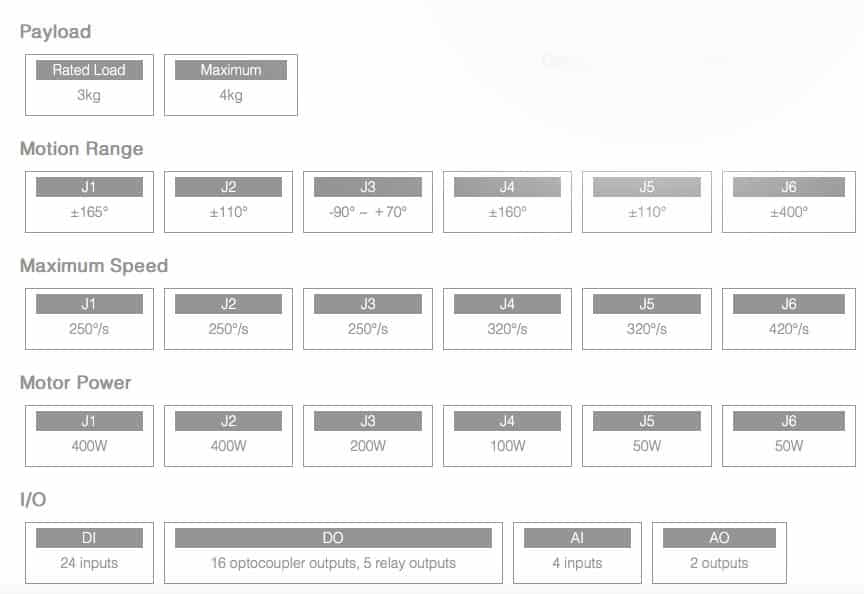

SR6-3 Specifications

  • Type: DT-DB-6R030-00I
  • Reach: 572mm
  • Position Repeatability: ±0.02mm
  • User Circuit: 15Pin(D-Sub Port)
  • User Air Pipe: φ6mm x 2
  • Net Weight: 29.5kg
  • Communication Mode: Ethernet, Modbus
  • Internal PLC: support
  • External Axis Control: support

SR6-3 Applications

Inspecting, assembling, measuring, polishing, sorting, material loading and unloading

Additional information

Type

DT-DB-6R030-00I

Reach

572mm

Position Repeatability

±0.02mm

User Circuit

15Pin(D-Sub Port)

User Air Pipe

φ6mm x 2

Net Weight

29.5kg

Communication Mode

Ethernet, Modbus

Internal PLC

support

External Axis Control

support
