DOBOT SR4-5 4-axis Series Robotic Manipulator

DOBOT SR4-5 Applications

  • Inspecting
  • Assembling
  • Measuring
  • Polishing
  • Sorting
  • Material loading and unloading

Description

DOBOT SR4-5 4-axis Series Robotic Manipulator Description

DOBOT SR4-5 features compact structure, flexible actions, fast speed and high position accuracy with a ±0.01mm end repeatability, 6kg maximum load and 600mm working range. SR4-5 greatly improves the adaptability to perform complex assembly tasks and provides significant space and cost savings.

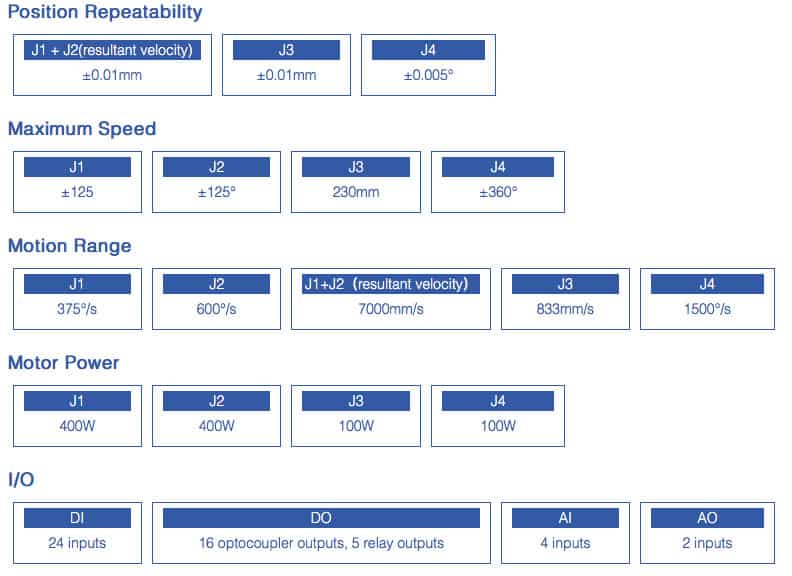

DOBOT SR4-5 Specifications

  • Payload: 5Kg-6Kg
  • Type: DT-DB-4R050-00I

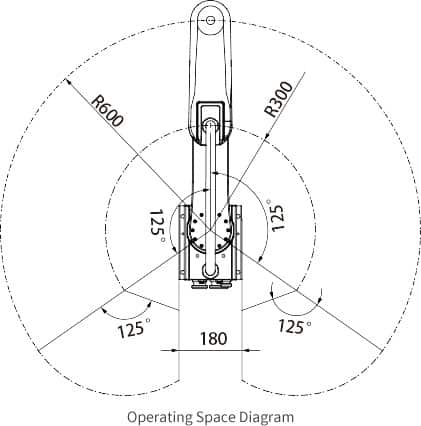

  • Reach: 600mm
  • Standard Cycle Time: 0.45s
  • User Circuit: 16 Pin, 8in/8out expandable
  • User Air Pipe: φ6mm x 2
  • Net Weight: 20kg
  • Communication Mode: Ethernet, Modbus
  • Internal PLC: support
  • External Axis Control: support

DOBOT SR4-5 Applications

Inspecting, assembling, measuring, polishing, sorting, material loading and unloading

Additional information

Payload

5Kg-6Kg

Reach

600mm

Standard Cycle Time

0.45s

User Circuit

16 Pin, 8in/8out expandable

User Air Pipe

φ6mm x 2

Net Weight

20kg

Communication Mode

Ethernet, Modbus

Internal PLC

support

External Axis Control

support
