DOBOT SR6-5925 6-axis Series Robotic Manipulator

SR6-5925 Applications

  • Inspecting
  • Assembling
  • Measuring
  • Polishing
  • Sorting
  • Material loading and unloading
Categories: , , , Tags:

Description

DOBOT SR6-5925 6-axis Series Robotic Manipulator Description

DOBOT SR6-5925 offers a maximum 8kg end payload and a 910mm working range. No matter how complex the trajectory or environment is, SR6-9 can swerve at high speed without slowing down and present outstanding performance.

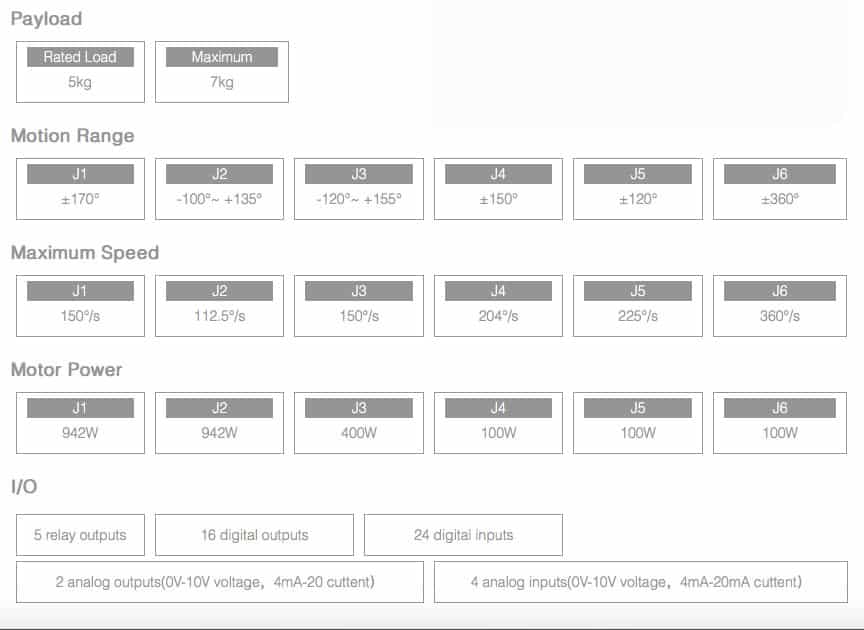

SR6-5925 Specifications

  • Type: DT-DB-6R060-01I
  • Reach: 925mm
  • Position Repeatability: ±0.05mm
  • Net Weight: 86kg
  • User Air Pipe: φ6mm x 2
  • User Circuitstandard configuration: 16 in/16 out
  • Communication Mode: Ethernet, Modbus
  • Internal PLC: support
  • External Axis Control: support

SR6-5925 Applications

Inspecting, assembling, measuring, polishing, sorting, material loading and unloading



Additional information

Type

DT-DB-6R060-01I
Reach

925mm
Position Repeatability

±0.05mm
Net Weight

86kg
User Air Pipe

φ6mm x 2
User Circuit

standard configuration 16 in/16 out
Communication Mode

Ethernet, Modbus
Internal PLC

support
External Axis Control

support
