DOBOT SR6-5735 6-axis Series Robotic Manipulator Description

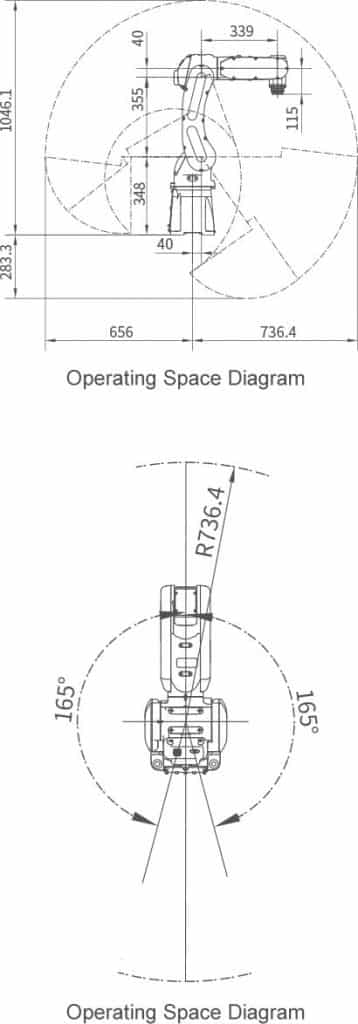

DOBOT SR6-5735 has a maximum load of 8kg at the end and a working range of 710mm. The robot can freely move around in a narrow working space by taking advantage of its great flexibility, speed and accuracy.

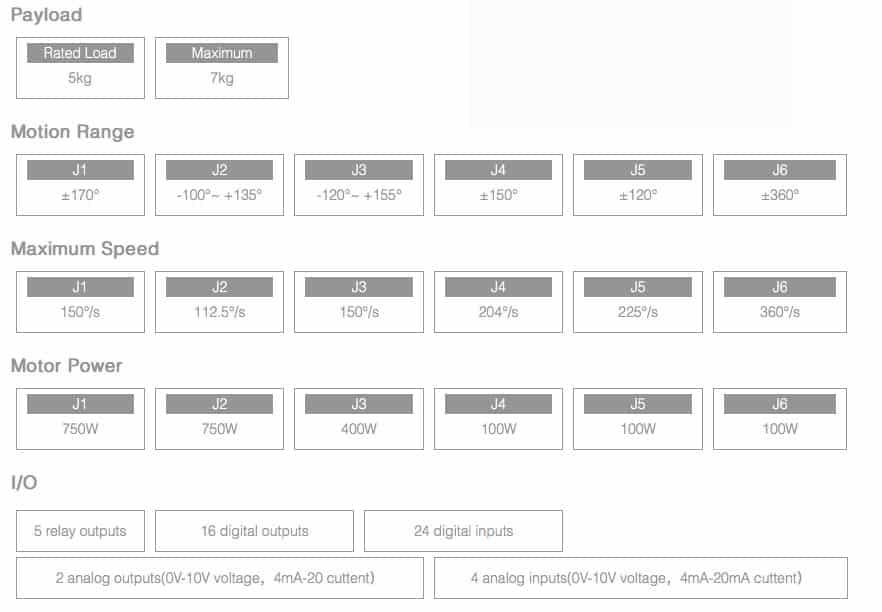

SR6-5735 6-axis Series Robotic Manipulator Specefications
- Type: DT-DB-6R060-00I
- Reach: 735mm
- Position Repeatability: ±0.03mm
- Net Weight: 40kg
- User Air Pipe: φ6mm x 2
- User Circuitstandard configuration: 16 in/16 out
- Communication Mode: Ethernet, Modbus
- Internal PLC: support
- External Axis Control: support
DOBOT SR6-5735 Applications
Inspecting, assembling, measuring, polishing, sorting, material loading and unloading
